saturno 2t FULL in action.
Automatic self-adhesive label applicators to be combined with production lines, ideal for the application of top, bottom and side self-adhesive labels.
labeling lines
saturno 2t FULL
labeling lines

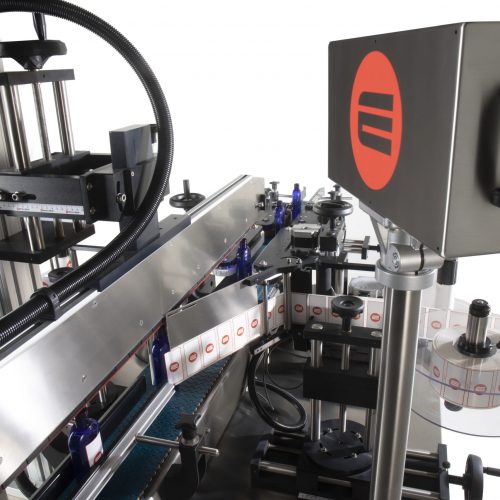

SATURNO 2T FULL.
HEADS LABELLING SYSTEM FOR FRONT AND BACK APPLICATION
Labeling line with variable speed, conveyor belt 0-30 meters for minute. Monobloc in stainless steel.

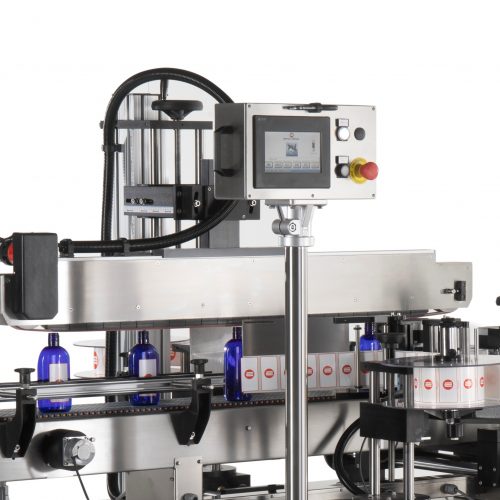

Available with 2 labeling heads of 50, 100, 140, 190, 230 and 260 mm. Electronic management via PLC for the synchronization of all the components, by encoder. Equipped with color touch screen display for
setting the speeds and the various parameters to obtain perfect labeling. Comunication interface to manage INPUT and OUTPUT signals. Can record till 50 receipts.
OPTIONAL
- Support for HP printing
- Support for TTO printing
- Ultrasonic label sensor
- Turn collecting table
- Turn feeding table
- preend of label
- Caster
- Ejector system
- Seal adapter
- Safety protection
- Movements with metrics
SHOWS HOW THE MACHINE WORKS
How does it works?
TECHNICAL INFO.
Saturno 2T Full
| table data | |
|---|---|
| CONVEYOR BELT SPEED | 0-30 m/min |
| stainless steel | Yes |
| 2 labeling heads | 50, 100, 140, 190, 230 e 260 mm |
| ELECTRONIC MANAGEMENT VIA PLC | Yes |
| Color touch screen | Yes |
| INPUT AND OUTPUT SIGNAL MANAGEMENT | Yes |
| memory | 50 receipts |
LABEL APPLICATION.
DIRECTIONS.
