uRANO N in action.
Automatic self-adhesive label applicators to be combined with production lines, ideal for the application of top, bottom and side self-adhesive labels.
URANO N
print and apply
print and apply
URANO n.

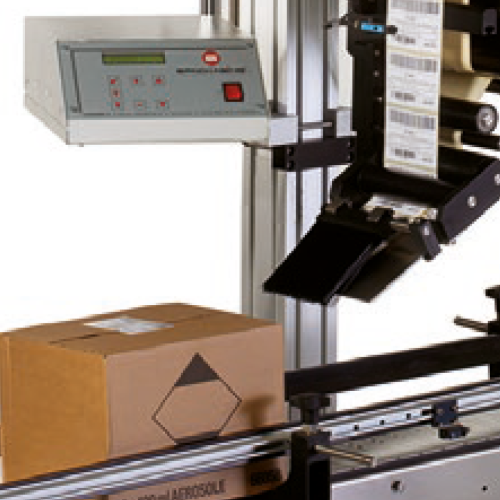

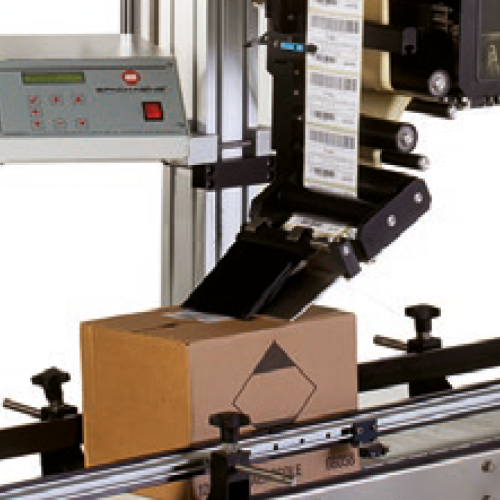

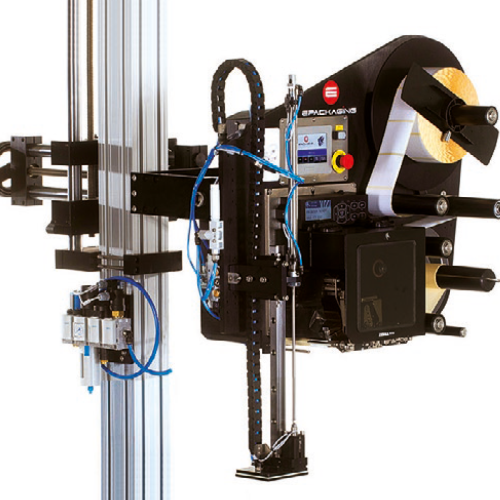

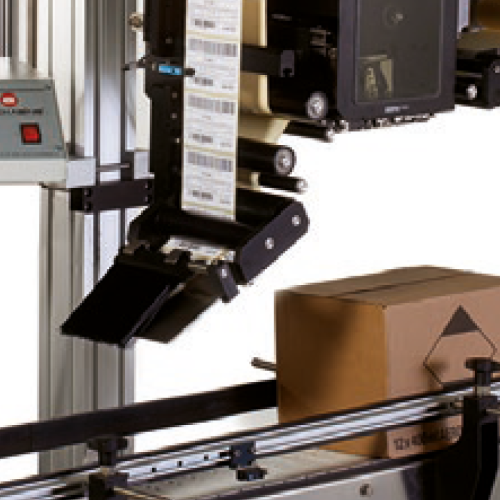

Pneumatic applicator for printing and application in real time via a cylinder with suction plate and label blower on the product. It can be applied both on the side and on the top. We can print logos, alphanumeric data, bar codes using software.
The pneumatic URANO system is available with TEC and ZEBRA printers.
OPTIONAL
- Full column
- Software dedicated
- label presence sensor
- Self-dimensioning cylinder stroke sensor for products of different heights
- Optical / acoustic alarm at the end of labels and / or tape
SHOWS HOW THE MACHINE WORKS
How does it work?
TECHNICAL INFO.
Urano N
| table data | |
|---|---|
| PRINT AND APPLY SYSTEM WITH PNEUMATIC APPLICATION | Yes |
| Max printing width | 104 mm o 170 mm |
| Inner spool diameter | 45 mm o 76 mm |
| Max. outer spool diameter | 300 mm 0o 203 mm |
| Connection to parallel port or RS232 – USB | Yes |
| CYLINDER WITH APPLICATION STROKE | 200 o 300 mm. |
| Label-shaped suction plate | Yes |
| DEFINITION OF PRINT | 200 dpi o 300dpi |
| Thermal transfer or direct heat transfer printing | Yes |
| Pneumatic material | SMC o festo |
| Compressed air regulator included | Yes |
| CONTROL UNIT WITH MICROPROCESSOR FOR THE MANAGEMENT OF THE APPLICATION CYCLE" | Yes |
| Software includes | Yes |
label application.
