labelling heads

Trito and Giove
SMART SYSTEMS

labelling heads

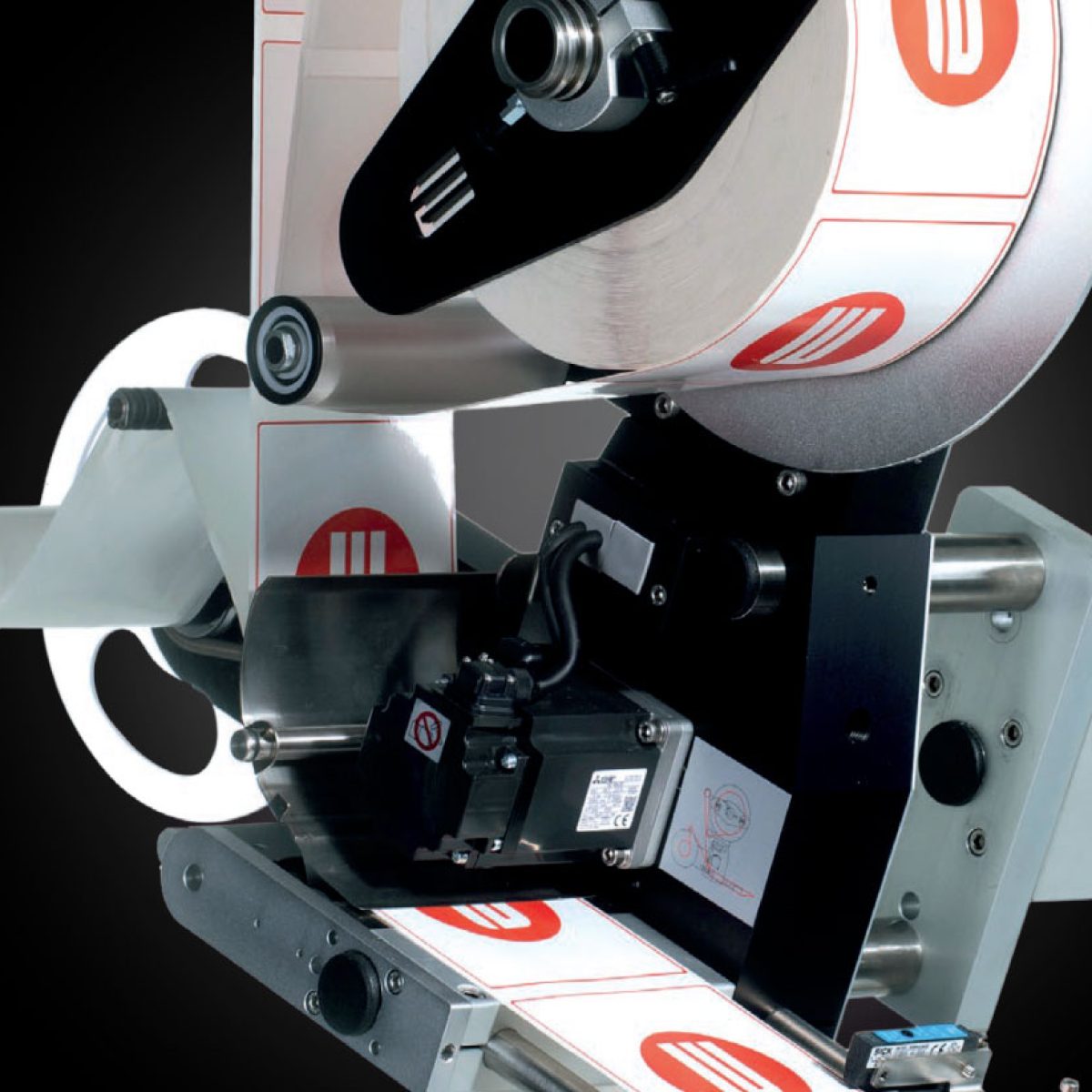

Trito and Giove smart system.

The applicator of self-adhesive labels to match with production lines, ideal for mounting on flat or slightly irregular. Labeling heads TRITO and GIOVE can be used for applications above or to the side. The main feature of the model Simplicity in installation and use. The head is available left and right (on all units).

optional
Trito and Giove in azione
KNOW US BETTER

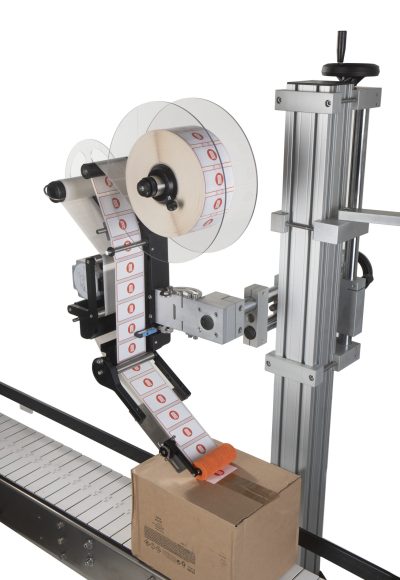

trito and giove IN ACTION.

Automatic self-adhesive label applicators to be combined with production lines, ideal for the application of top, bottom and side self-adhesive labels.

SHOWS HOW THE MACHINE WORKS

How does it work ?

TECHNICAL INFO.

Model: Trito 50, Trito 100, Giove 140
table data
Speedvariable from 0-30m
Maximum label width50 mm / 100 mm / 140 mm
Width min10 mm
 Label Length500 mm (other sizes on request)
Length min10 mm
Inner diameter min.coil – 38 mm. (76 with adapter)
Labels roll diameter300 mm
Automatic self-adhesive label applicatorYes
Engine typestep / step
Electronic control unitcontrolled by a microprocessor with display, ability to handle speed of delivery, delay start, pre-label distribution, a counting
Start PhotocellYes
Read labels by photocell
Memory50 recipts
Power supply200 0 110 V / 60 Hz
Weight 15 kg

TECHNICAL INFO.

Model: Giove 190, Giove 230 e 260
table data
Speedvariable from 0-30m
Maximum label width190 mm / 230 mm / 260 mm
Width min10 mm
 Label Length500 mm (other sizes on request)
Length min10 mm
Inner diameter min.coil – 38 mm. (76 with adapter)
Labels roll diameter300 mm
Automatic self-adhesive label applicatorYes
Engine typestep / step
Electronic control unitcontrolled by a microprocessor with display, ability to handle speed of delivery, delay start, pre-label distribution, a counting
Start PhotocellYes
Read labels by photocell
Memory50 recipts
Power supply200 0 110 V / 60 Hz
Weight 15 kg

LABEL APPLICATION.

Trito-giove-en
ARE YOU INTERESTED IN OUR LABELLING MACHINE?

More info.
